全自動化裁斷機系列
您當前的位置是:首頁>>產品展示>>全自動化裁斷機系列

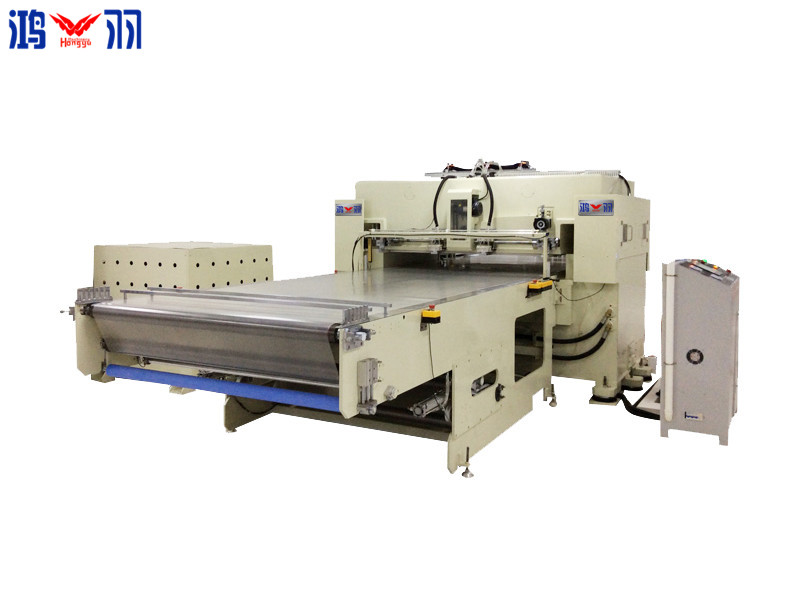

偏光片模切機

發布時間:2019-01-14 16:45:24  瀏覽次數:


本機適用于電子業、PET,PP,PVC、偏光片,粘膠、絕緣材料、屏蔽材料、3M.SONY,NITTO,TEST,PORON(橡膠)等特殊膠帶成型,以及LED.LCD、背光源、反光源(RW-100,RW-50,RF-188)散光膜(日本王子:90,75,60D204.D105、DB642.

CH19)、防靜電保護膜、黑白雙面膠、不透光鋁箔、增光膜、鐳射紙等的多次復合綜合加工。

This machine is suitable for electronics industry,PET,PP,PVC,polarizer,adhesive,insulation material,shielding material,3M,SONY,NITTO.

TEST.PORON(rubber)and other special tape molding,as well as multiple composite processing of LED.LCD,backlight,anti-light source(RW-100,RW-50,RF-188)astigmatism film(Japan Prince:90,75,60D204,D105,DB642,CH19),anti-static protective film,black and white ouble-sided adhesive tape,opaque aluminum foil,brightness enhancement film,laser paper and etc.


本機精度高、噪音小、速度快、跳距準。是電子行業中理想的非金屬材料沖型設備。

,采用先進的電腦數碼拉帶系統,觸摸屏操作PLC程序控制:1送料長度可根據客戶需求自行設置;2具有油壓電腦自動監控系統,當油壓過高或過低時機器自動報警,確保機器在正常的油壓范圍內工作;3伺服送料長度與機器模切速度進行自動設置,無需調節。

整機設計:(1材料不接地;不易受潮;不受污染;2模切行程170mm,壓力穩定;3具有精度高、噪音小、跳距準、等優點。

放料部分:1放料配備獨立電機、可正、反轉;2自動張力控制器控制張力,操作方便;3放料部分采用自動感應放料,使材料不接地,裁切部分:1可安裝木板刀模;2裝有安 全光幕保護裝置,確保操作人員安 全;3刀模角度可任意調節,對位更加方便、快捷。

,送料系統:1采用進口伺服拉料,性能穩定,送料精 確;2進口絲杠、滑軌,精度高,使用壽命長,不易磨損,且不受溫度影響,穩定性更強This machine has features of high precision,low noise,fast speed and accurate hop distance.It is the most ideal non-metallic material punching equipment in the electronics industry.

Advanced computer digital drawing system and touch screen operation PLC program control are adopted in this machine:feeding length can be set according to customer's needs:with hydraulic computer automatic monitoring system,the machine automatically alarms to ensure the machine workin within the nomal oil.

pressure range when the oil pressure is too high or too low;servo feed length and machine mold cutting speed are automatically set without adjustment.

Machine design:material is not grounded,not easy to get wet or not contaminated;170MM mold cutting stroke,stable pressure;high precision,low noise,standard hop distance and so on.

Loading part:loading material is equipped with independent motor which can be forward and reverse;automatic tension contraller controls tension,which is eas to operate;loading part adopts automatic induction loading,so that the material is not grounded Cutting part:can install wooden knife mold;equipped with safety light curtain protection device to ensure the safety of operators;cutter angle can be adjsted frely.

and the alignment is more convenient and quick.

Feeding system:imported servo pull material,stable performance,accurate feedina;imported screw,slide rail,nigh precision,lona service life,not easy to wear,not affected by temperature and strong stability
