全自動化裁斷機系列
您當前的位置是:首頁>>產品展示>>全自動化裁斷機系列

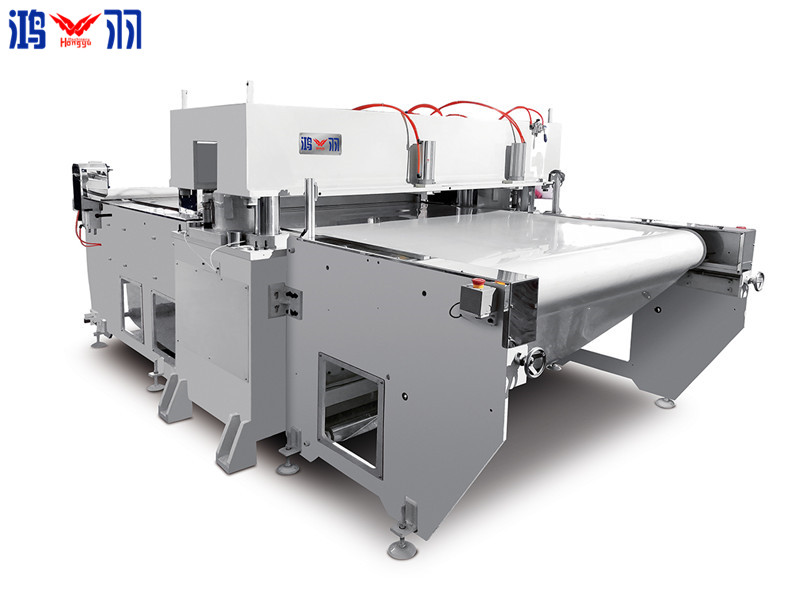

皮帶式自動送料裁斷機

發布時間:2019-01-14 16:45:24  瀏覽次數:


本機適合發泡材料、紙板、防織物、皮革制品、塑料材料、地板材料、迫緊材料、玻璃纖維、軟木等材料之刀模裁斷,尤其對于大面積的各種片狀材料、吸塑正版公母刀模裁斷作業。本機更能提供良好的裁斷精度動作,及較大的裁斷能力輸出。

This machine is suitable for die cutting of pearl cotton foam materials,cardboard,textiles,leather products,plastic materials,flooring materials.

pressing materials,glass fiber,cork and other materials,especially for cutting of large-area products.This machine can provide good cutting precision action and large cutting capacity output.


電腦控制系統,觸摸屏顯示,操作簡單、快捷、準確。

裁斷板下壓接觸裁刀10mm時自動慢切,使裁斷多層材料時上層與下層沒有尺寸誤差。

裁斷平衡度好,可以減少刀模及裁板的損耗,裁斷邊緣有更好效果,能更加減低裁斷板的消耗。

設定結構,配合裁斷刀及裁斷高度,使沖程調整簡單、準確中 央自動潤滑系統確保機器精度及提高機器耐用性。

刀模的固定夾緊裝置,更換刀模方便快捷,物料的輸入、輸出都在輸送帶上輸送,并且物料的模切沖裁也是在輸送帶上自動完成。

機械配有擋死機構,有效提高裁切精度和效率.

機械配有自動上料系統.

廢料采用輸送帶收料系統。

Computer control system:touch screen display;easy,fast and accurate operation.

When the cutting piate is pressed down to contact the cutter 10mm,it will automaticailly cut slowly,so that there is no dimensional error between the upper layer and the lower layer when cutting the multilayer material.

The cutting balance is good,which can reduce the loss of the cutting die and the cutting plate;the cutting edge has better effect,and the consumption of the cutting plate can be further reduced Unique setting structure with cutting knife and cutting height make stroke adjustment simple and accurate.

Central automatic lubrication system ensures the machine accuracy and improves the machine durability The fixed clamping device of the cutting die is convenient and quick to replace the die.

The input and output of the material are transported on the convevor belt,and the die-cutting of the material is also automatically completec on the convevor belt The machine has a blocking mechanical structure,effectively improve cutting accuracy and efficiency.

Machines are equipped with automatic feeding system.

Waste uses a conveyor belt receiving system.
